DASH M-SERIES:
Modular, compact hydrogen storage for precision applications
Standardized Dense and Save Hydrogen Storage
KEY FEATURES
DASH hydrogen storage modules are patented, solid-state systems designed to provide a safe, efficient, and sustainable solution for hydrogen storage. Utilizing advanced metal hydride technology, these modules excel in various applications, offering a range of benefits:
High Storage Density
Each DASH M module stores up to 30 kg of hydrogen per cubic meter at system level, optimizing space and maximizing storage capacity in compact environments.
Modular Design
The system’s modular nature easily adapts to growing demands, ensuring users can expand capacity as needed.
No Compression Required
DASH M eliminates the need for costly hydrogen compressors, simplifying installation and reducing infrastructure requirements.
Low Levelized Cost of Storage (LCOS)
With no need for costly compression or liquefaction, DASH M offers an attractive levelized cost of storage, ensuring both efficiency and affordability over its lifecycle.
Long Service Life
Built for durability, DASH M modules provide over 20 years of reliable service with no performance degradation.
Low Operational Expenditure (OPEX)
With fewer moving parts and no need for compression, DASH M significantly reduces maintenance costs and extends system lifespan.
Low Emissions
DASH M operates emission-free, making it a sustainable choice for hydrogen storage.
Superior Safety Standards
DASH M’s solid-state, low-pressure design ensures safe hydrogen storage, even in sensitive environments such as residential buildings or industrial sites.
DASH M-SERIES COLLECTION
The DASH M-Series offers a comprehensive range of solid-state hydrogen storage modules, engineered to address diverse energy storage requirements across residential, small-scale, and large-scale industrial applications. Each module upholds the highest standards in safety and high-density storage, offering a secure, scalable, and cost-effective hydrogen solution.

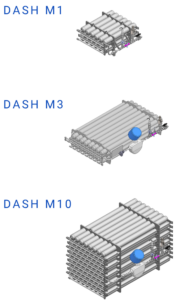

DASH M1, M3, M10
Optimized for compact hydrogen storage needs, the DASH M1, M3, and M10 modules are designed for use in residential, laboratory, and industrial settings. These models deliver scalable, high-density hydrogen storage that balances efficiency and reliability.

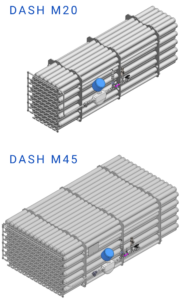

DASH M20, M45
Built for larger industrial and energy-intensive applications, the DASH M20 and M45 modules offer substantial storage capacity to support high-demand environments. Engineered for durability, these models are ideal for industrial processes, renewable energy integration, and large-scale backup power systems.
| DASH M-SERIES | Unit | M1 | M3 | M10 | M20 | M45 |
|---|---|---|---|---|---|---|
| Hydrogen Storage Capacity | kg H₂ | 1 | 3 | 10 | 20 | 45 |
| Weight | kg | 111 | 315 | 1035 | 1910 | 4180 |
| Dimensions (L × W × H) | m | 0.55 × 0.44 × 0.22 | 1.05 × 0.65 × 0.22 | 1.07 × 0.65 × 0.70 | 2.00 × 0.60 × 0.70 | 2.00 × 1.10 × 0.70 |
| ATEX Zones | — | — | None | — | — | |
| Recommended Hydrogen Supply Purity | % | — | — | 99.995 | — | — |
| Hydrogen Charging Pressure | bar(g) | — | — | 30 to 45 1 | — | — |
| Hydrogen Discharging Pressure | bar(g) | — | — | 1 to 45 1 | — | — |
| Expected Service Life | years | — | — | > 20 | — | — |
| 1 Depending on Thermal Management System (TMS) | ||||||
